Laguna Tools - AIR FILTER SYSTEM WITH WASHABLE ELECTROSTATIC FILTER SUPMX-810650
Laguna Tools - AIR FILTER SYSTEM WITH WASHABLE ELECTROSTATIC FILTER SUPMX-810650
This item ships directly from Laguna Tools. Please contact Sharp Tool for delivery information.

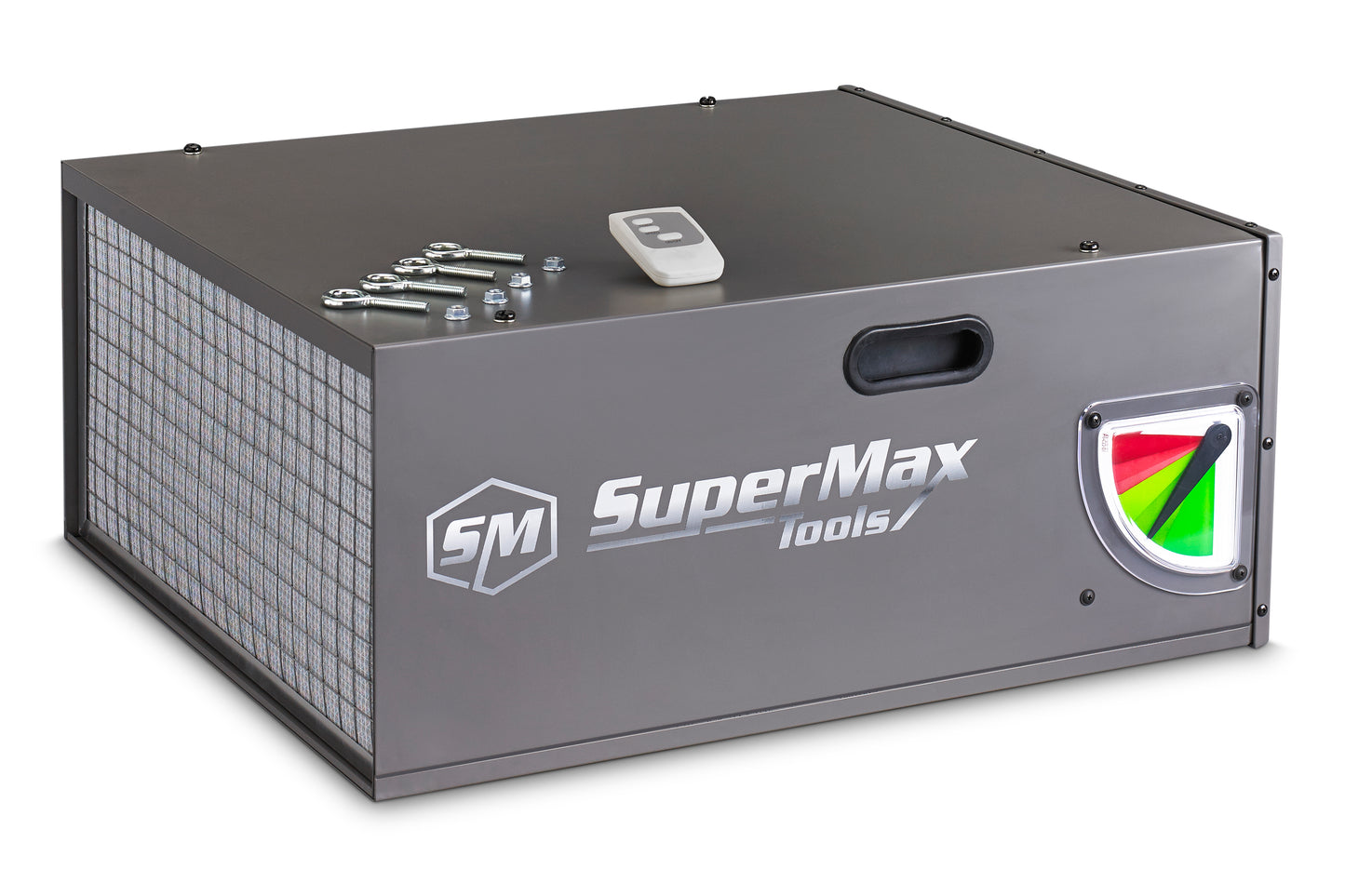

Air Filtration System
The Air Filtration Unit is designed to recycle all of the air in a 20’ x 20’ x 8′ space up to 22 times per hour at its highest speed. It includes one (1) outer washable electrostatic filter with an inner filter that captures all particles larger than 1 micron ensuring clean air output. The unit is equipped with a 1/5 HP, 60 Hz service with the option of 540, 730 or 1200 CFM.
Features
- Motor: 3HP 220V / 20 Amp Single Phase
- Spindle: 3HP Industrial Single phase Continuous Duty Liquid-Cooled
- Spindle RPM: 6,000 – 24,000 RPM
- Controller: Hand Held
- Ball Screw: On All Axis
Motor: 1⅕ HP, 120V, 1 Phase, 60 HZ
Max CFM: 540, 730, 1200 CFM
Filter Cycle: 20′ x 20′ x8′ Room – 10, 14, 22 times/hour
Outer Filter: 5 Micron Washable Electrospindle Filter – Size: 12″ x 24″ x 1″
Inner Filter: 1 Micron
Timer Settings: ½ Hour to 4 Hours
Motor Amp: 4.9
Length: 28″
Width: 24″
Height: 12″
Weight (Net): 60 lbs
Weight (Shipping): 73 lbs
Warranty: 3 Years
Decibels (High Speed): 59.6 dB
Decibels (Medium Speed): 56.1 dB
Decibels (Low Speed): 55.6 dB
Shipping Weight: 73lbs
Shipping Dimensions (L x W x H): 27in x 15in x 65in
