Laguna Tools - REVO 24|36 MLAREVO 2436-220

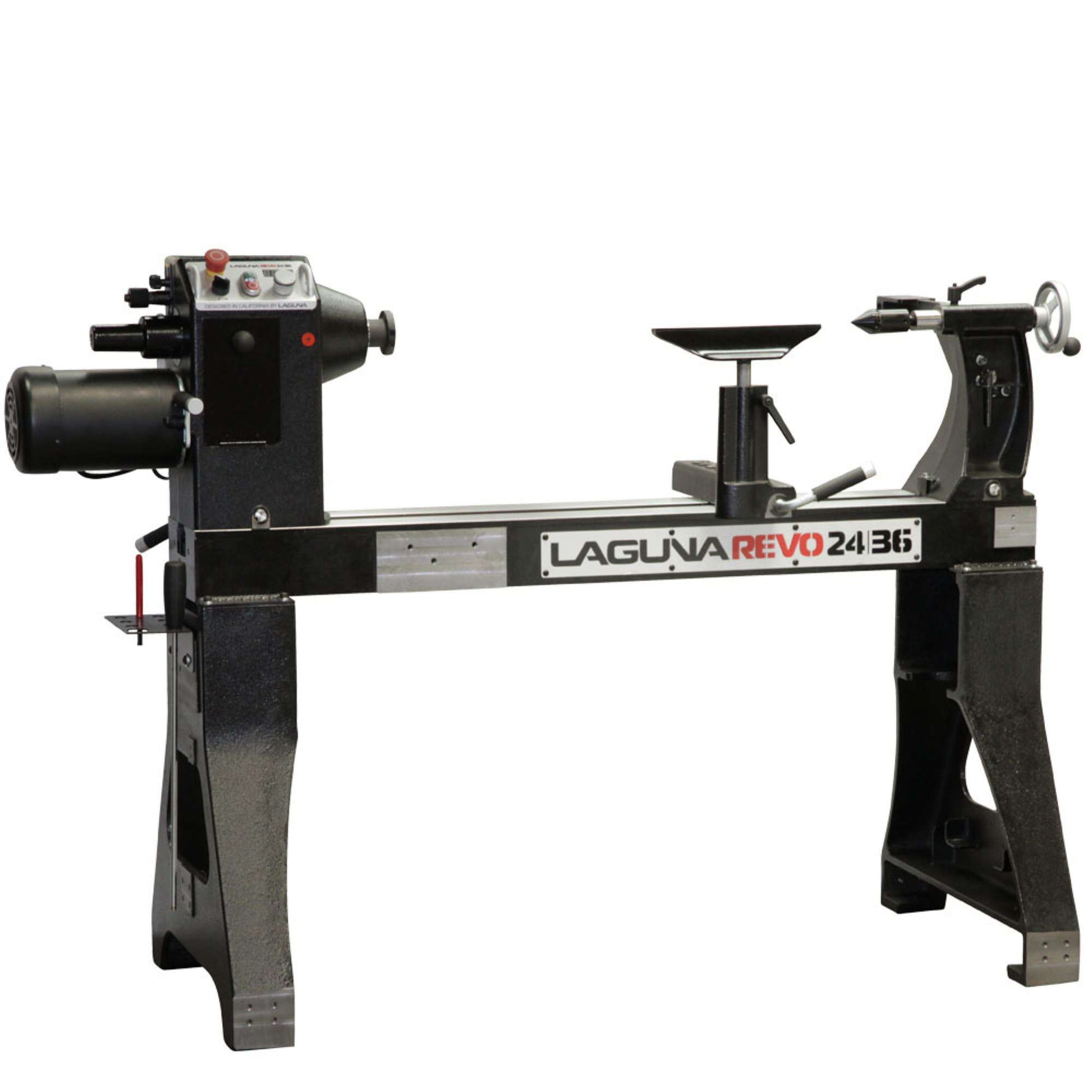

Revo 24|36 Lathe 220 Volt

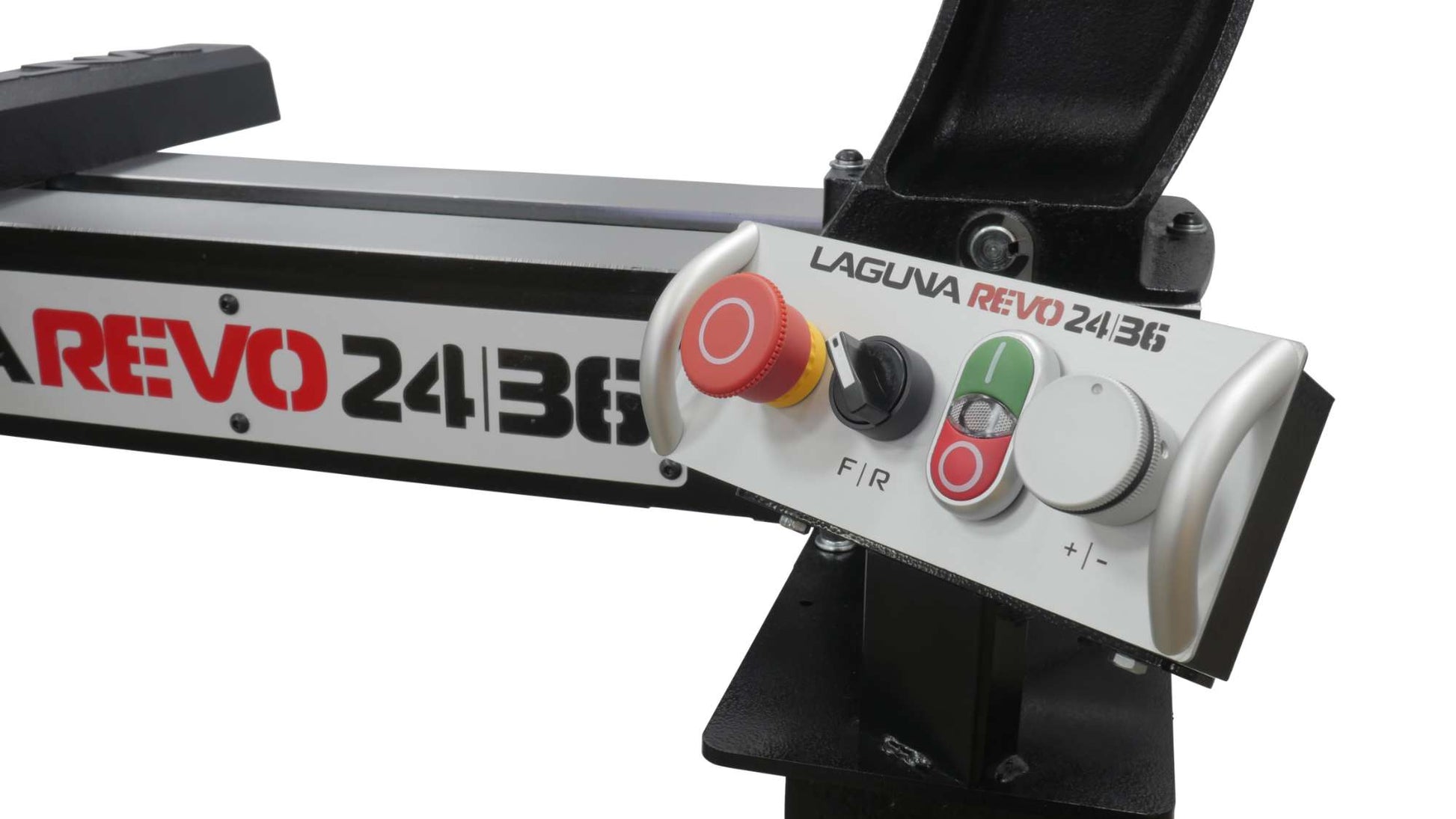

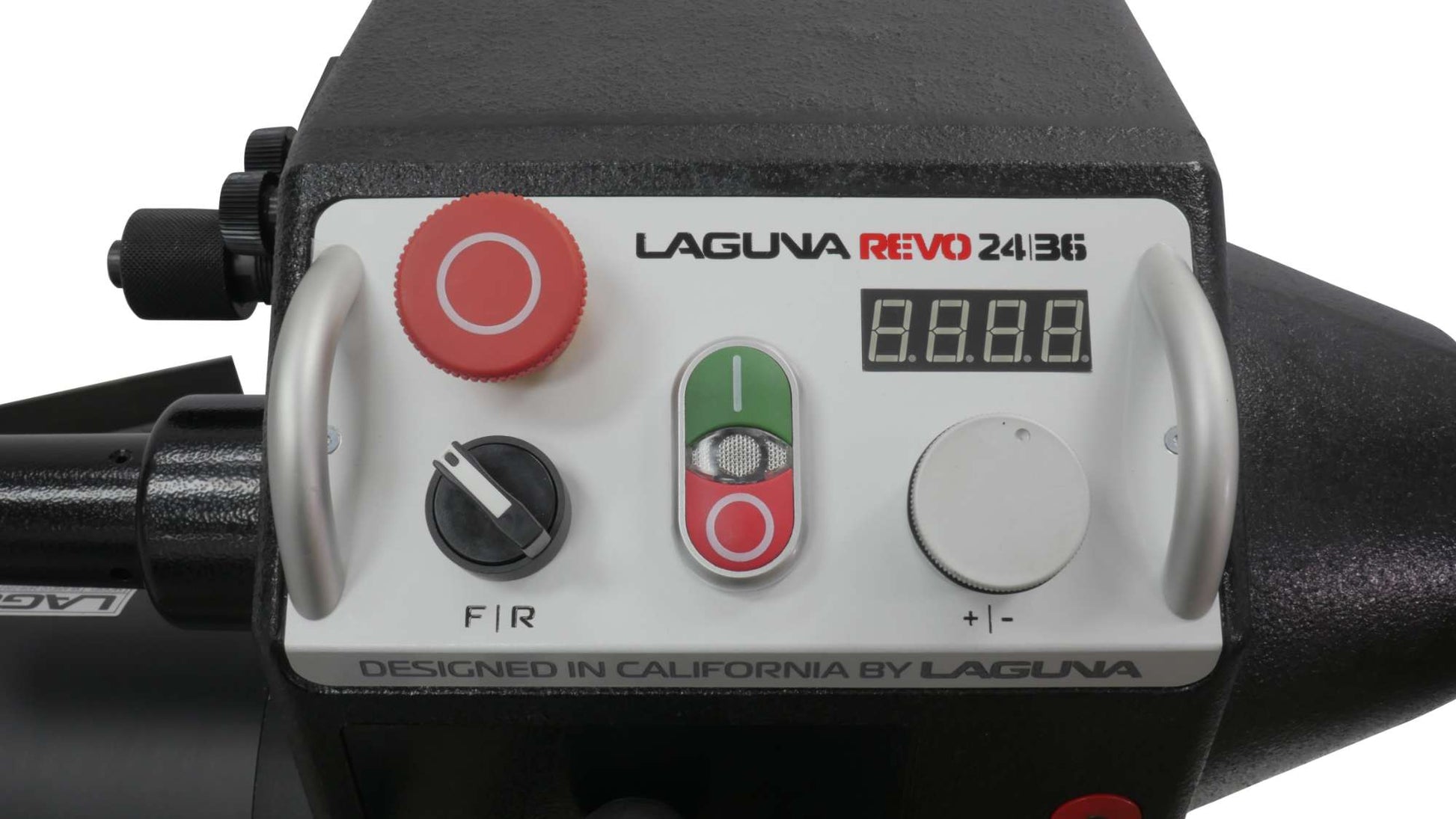

The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength.Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

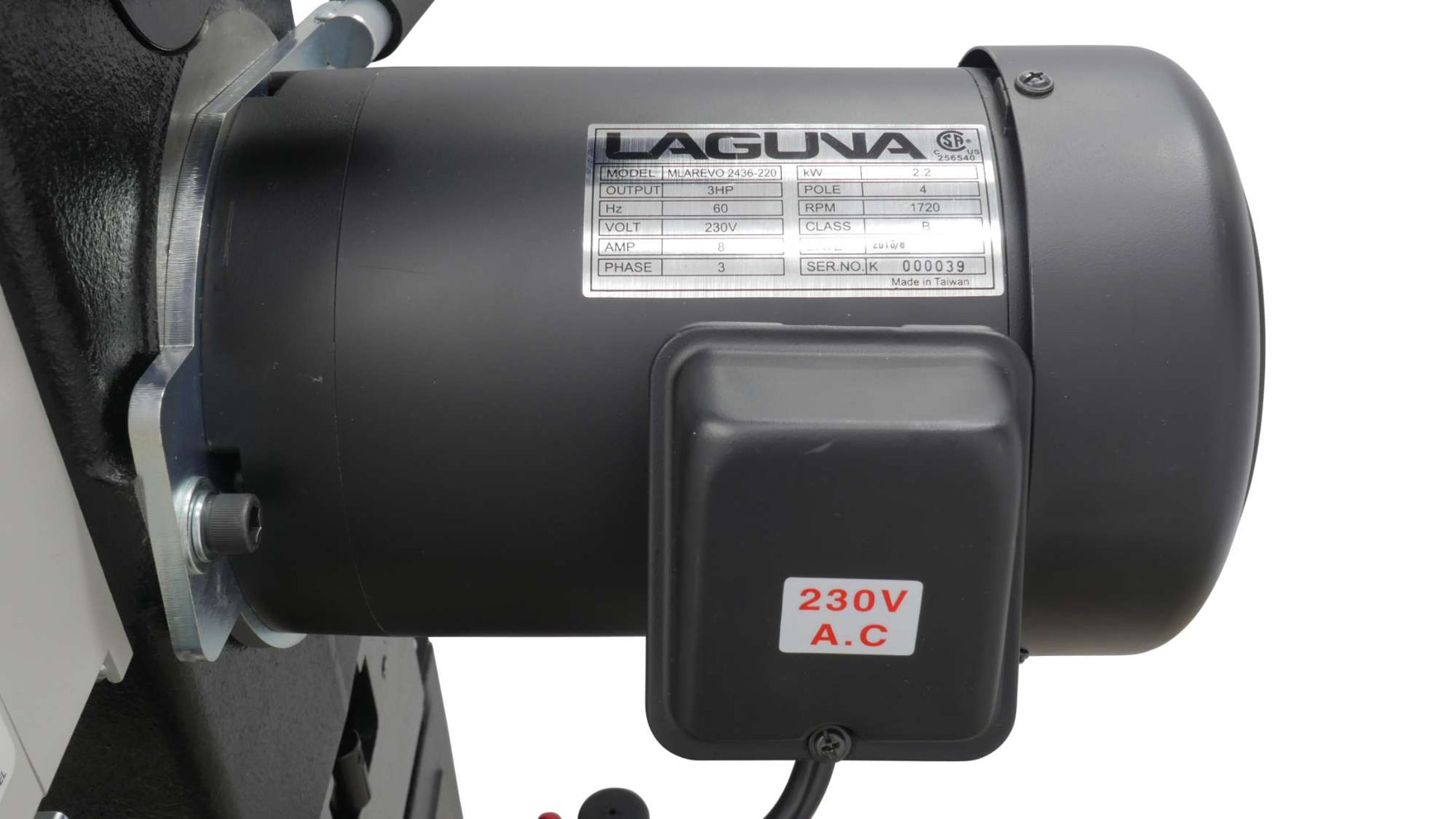

  • Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
  • Phase: 1-Phase Input, 3-Phase Output

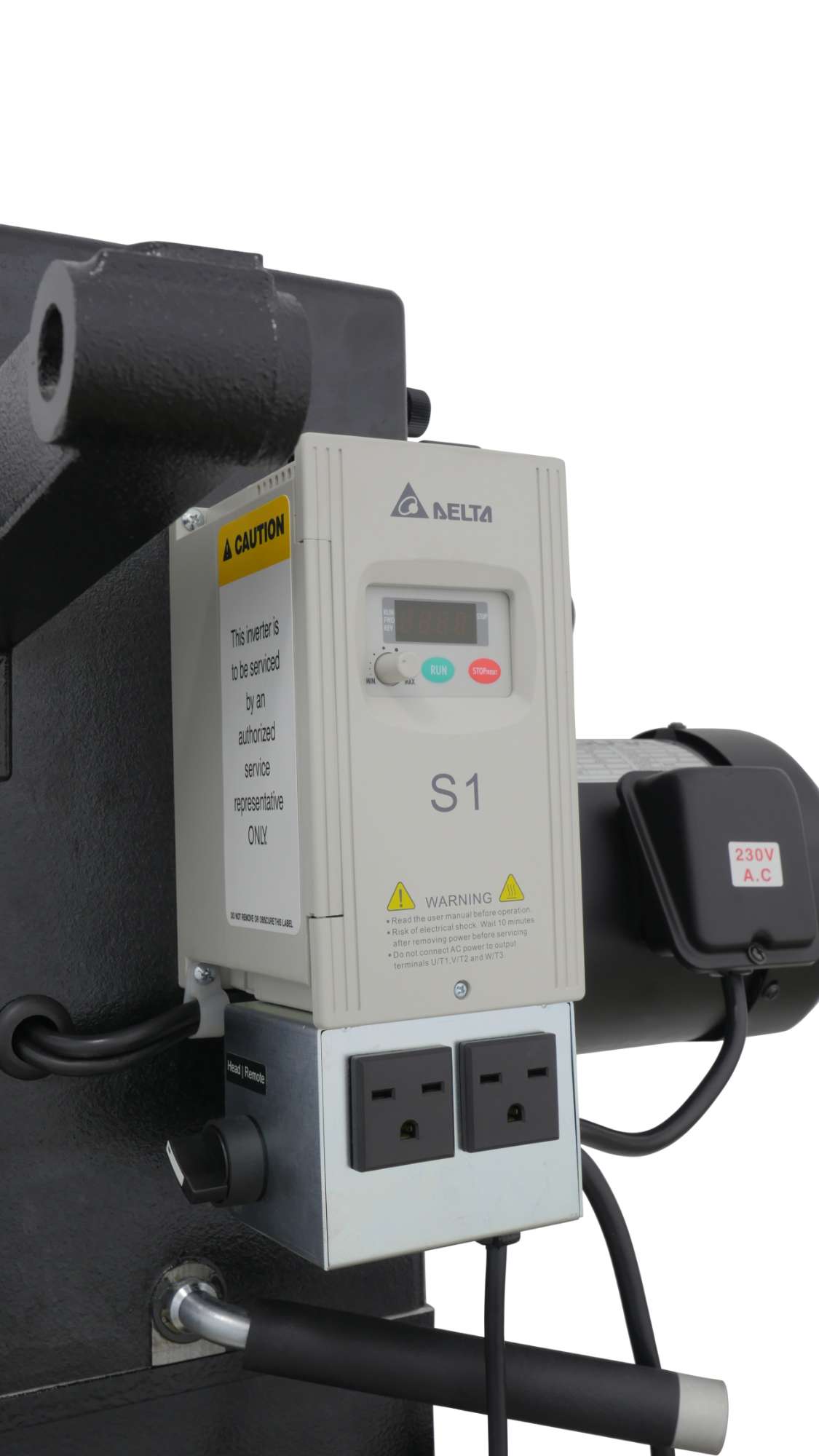

  • VFD: Delta S1 Variable Frequency Drive

Recommended Breaker Size: 15 Amp

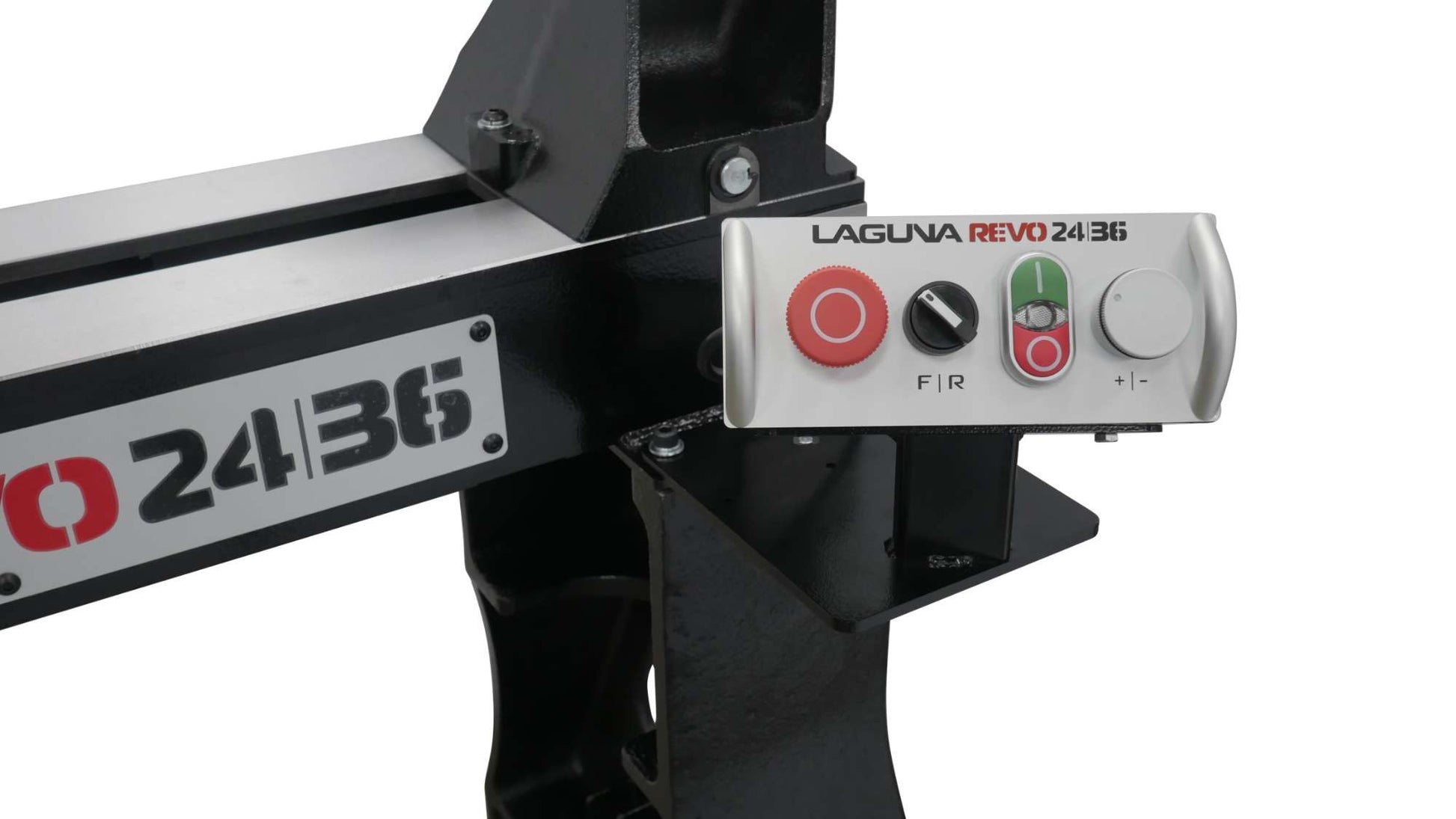

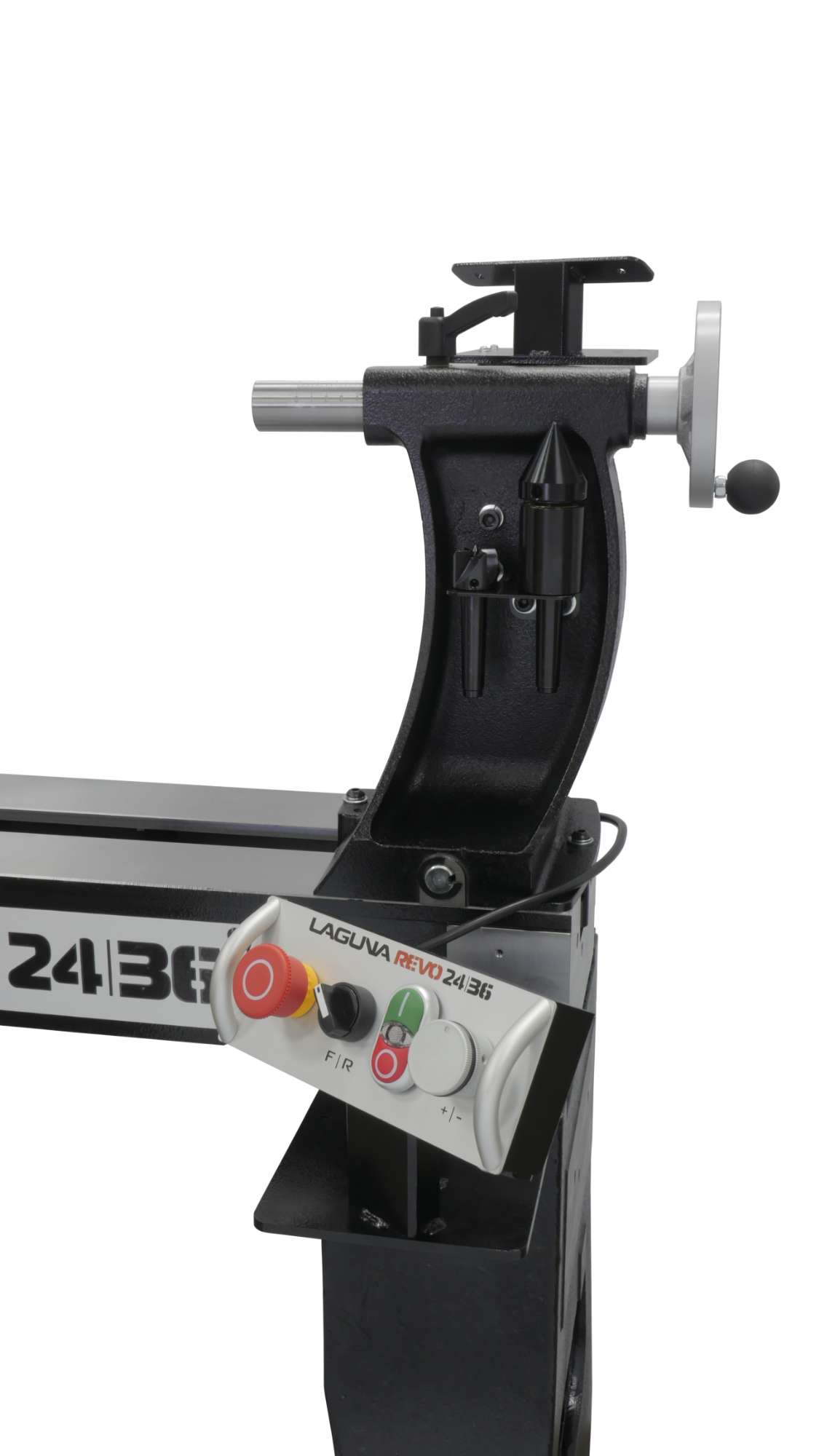

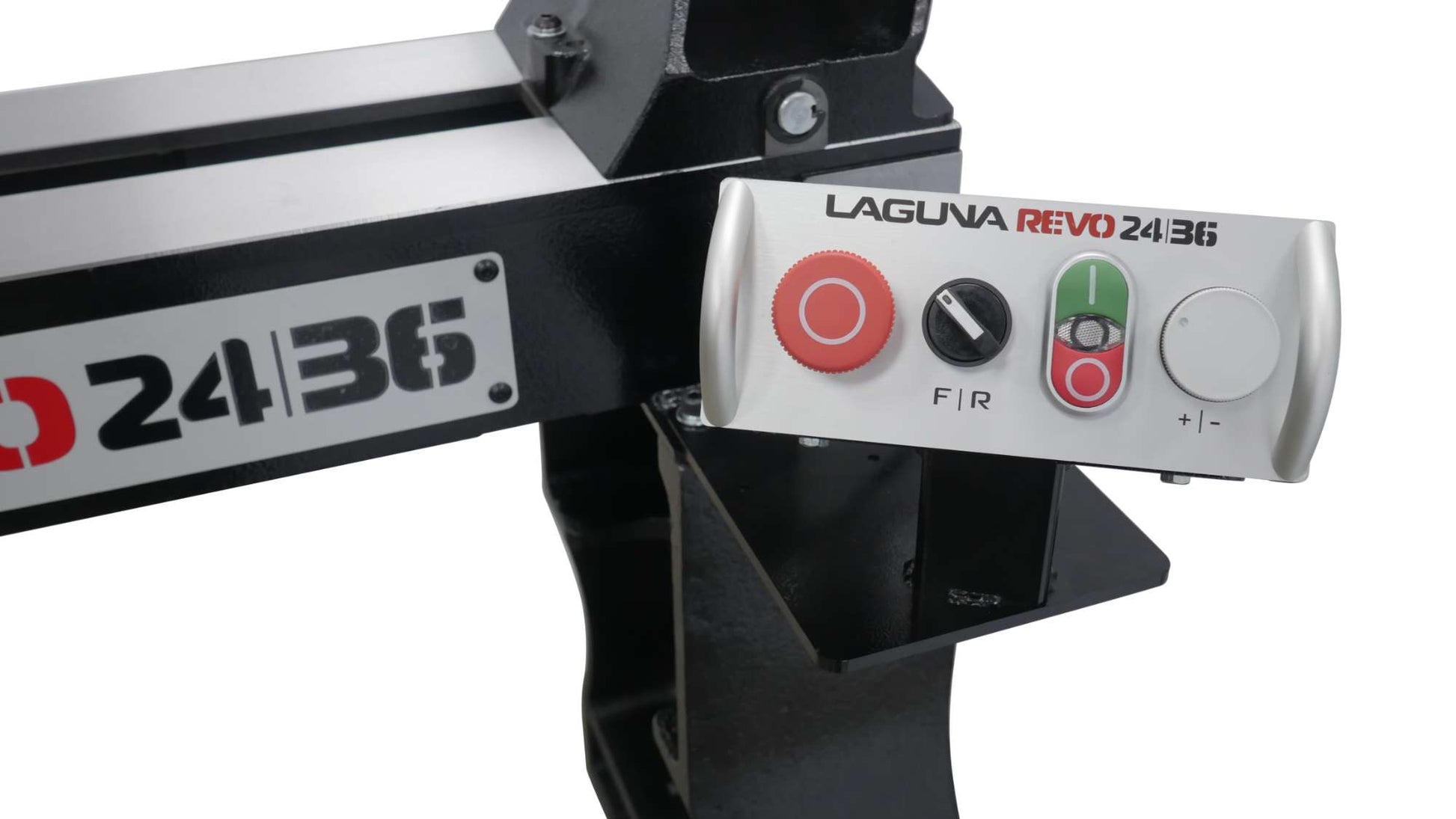

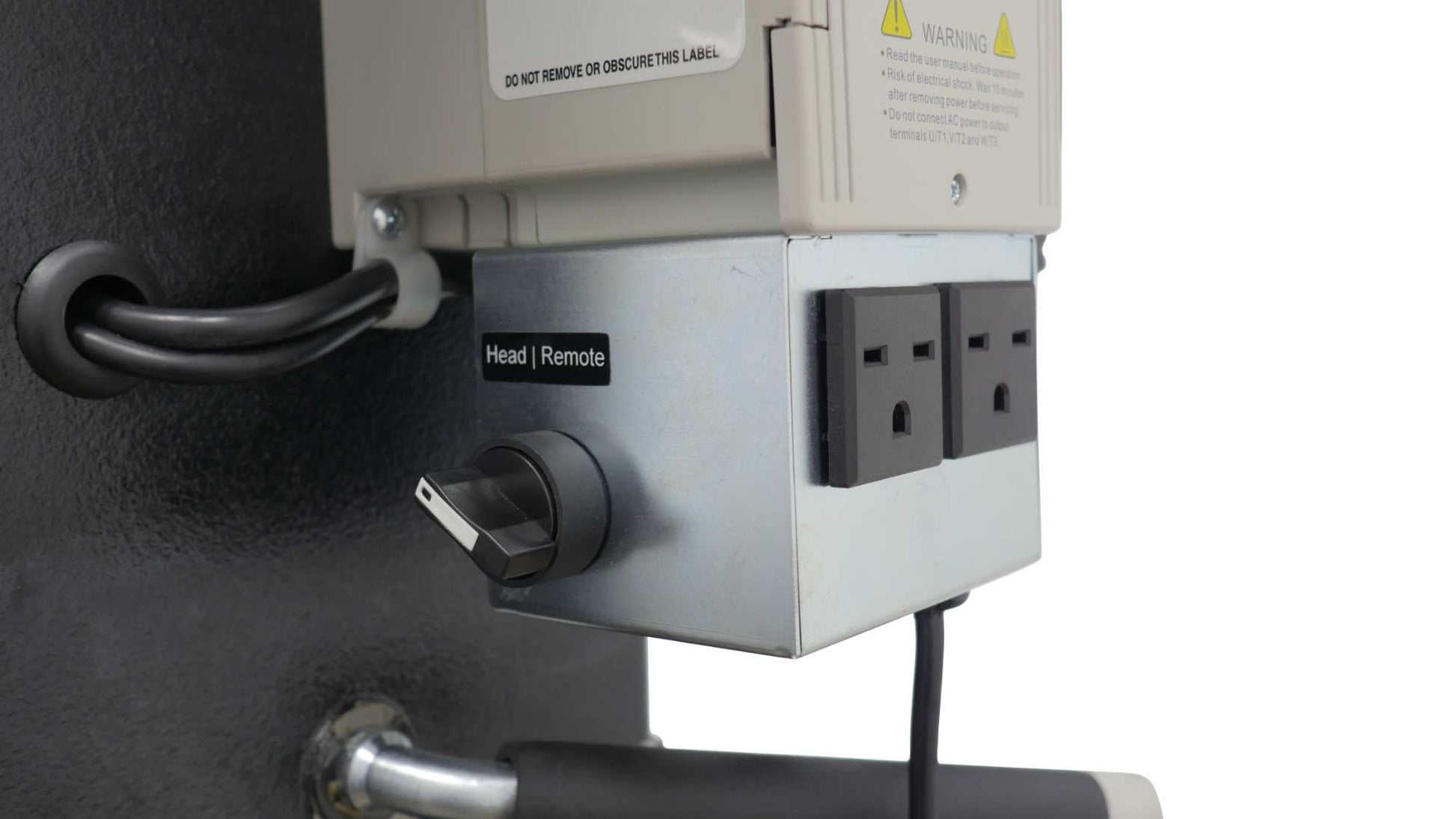

Remote Control Box With Speed Settings

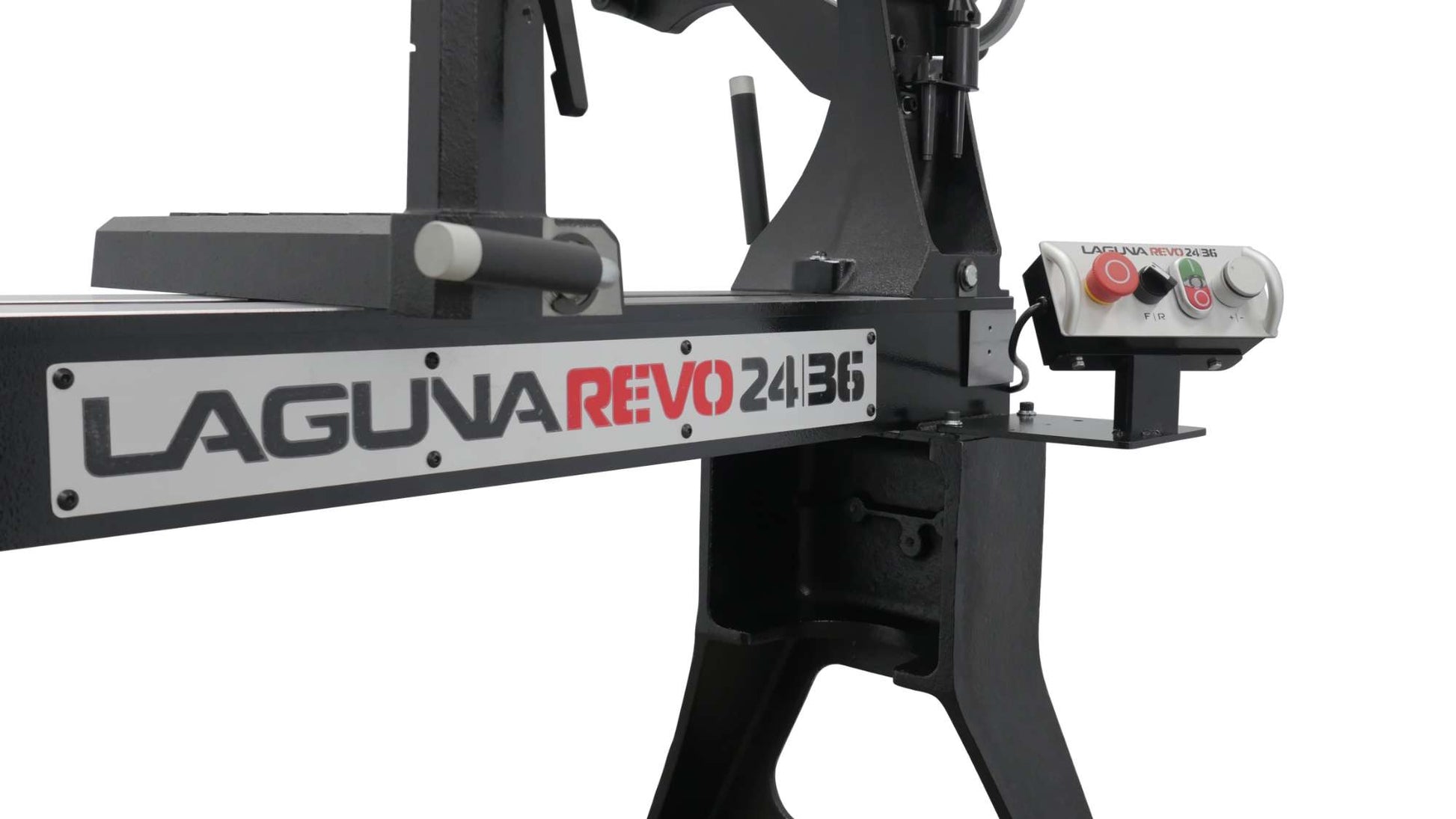

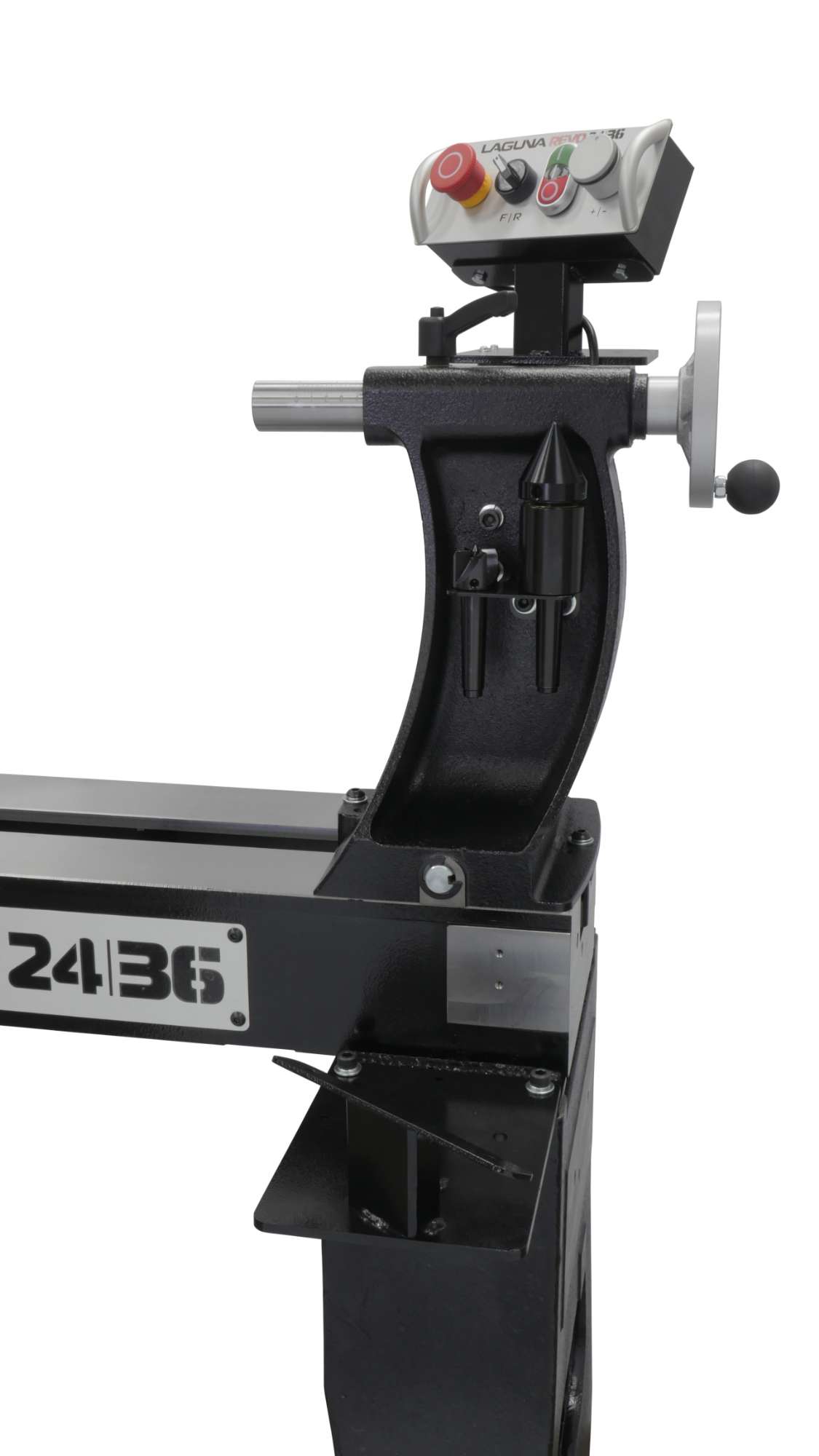

Two Ergonomic Control Panel Positions: High/Low

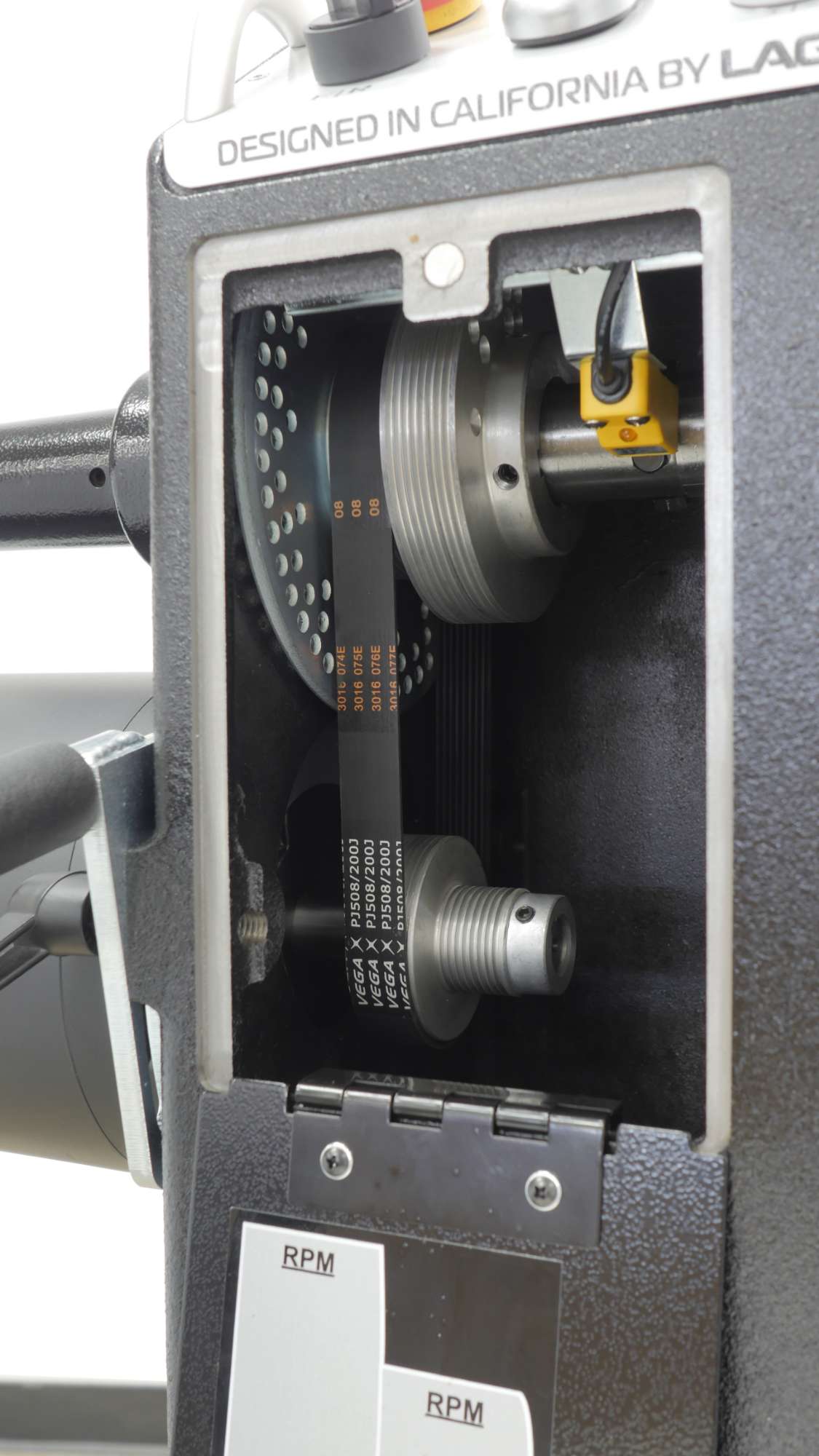

Drive Belt: Poly-Groove With EZ Access

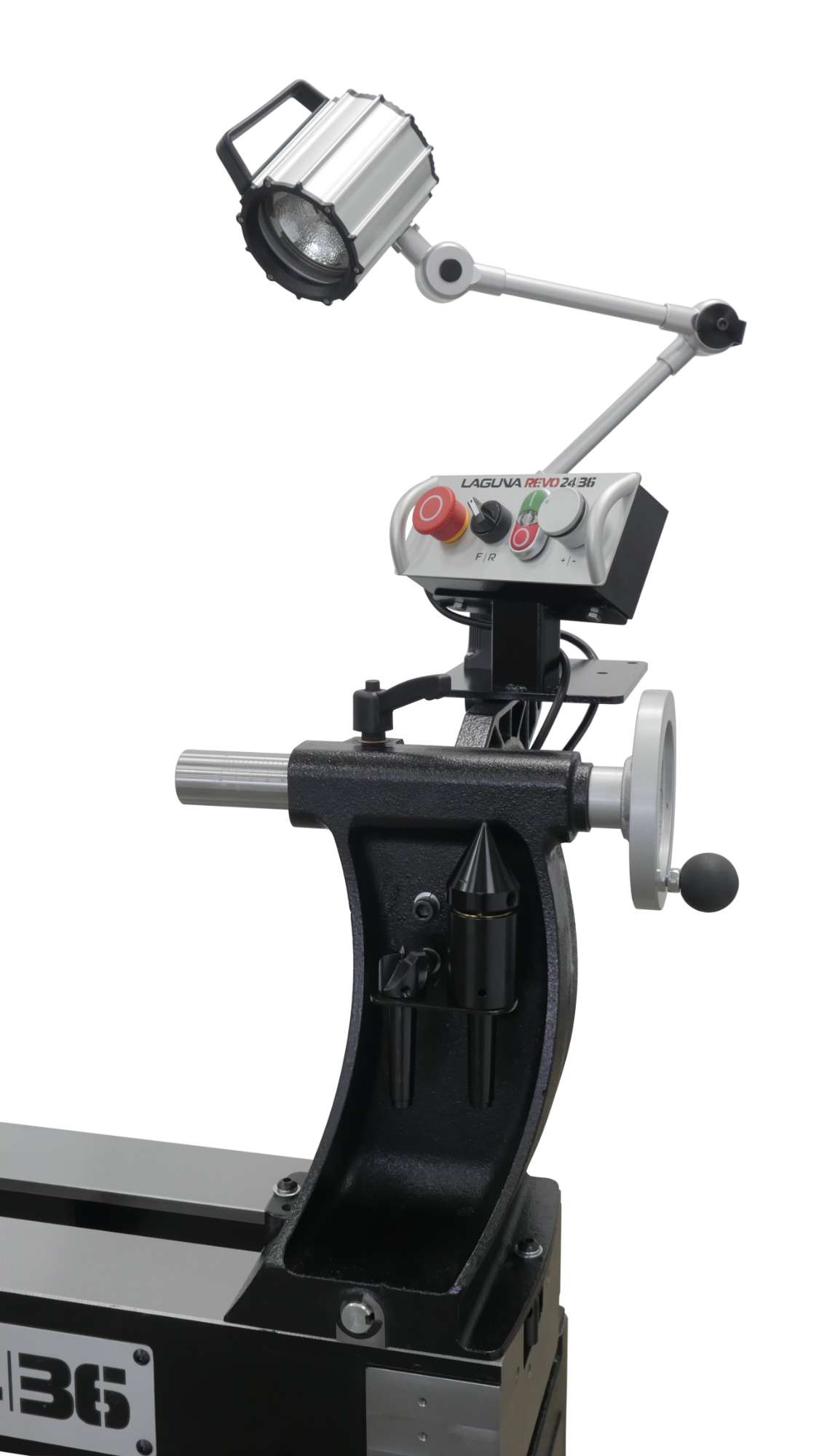

Tailstock Quill: 4½”, Engraved, Self-Ejecting

Floor Top Spindle Center: 44½”

Front Bearing: TPI Taiwan 6307LLU

Rear Bearing: TPI Taiwan 6205LLU

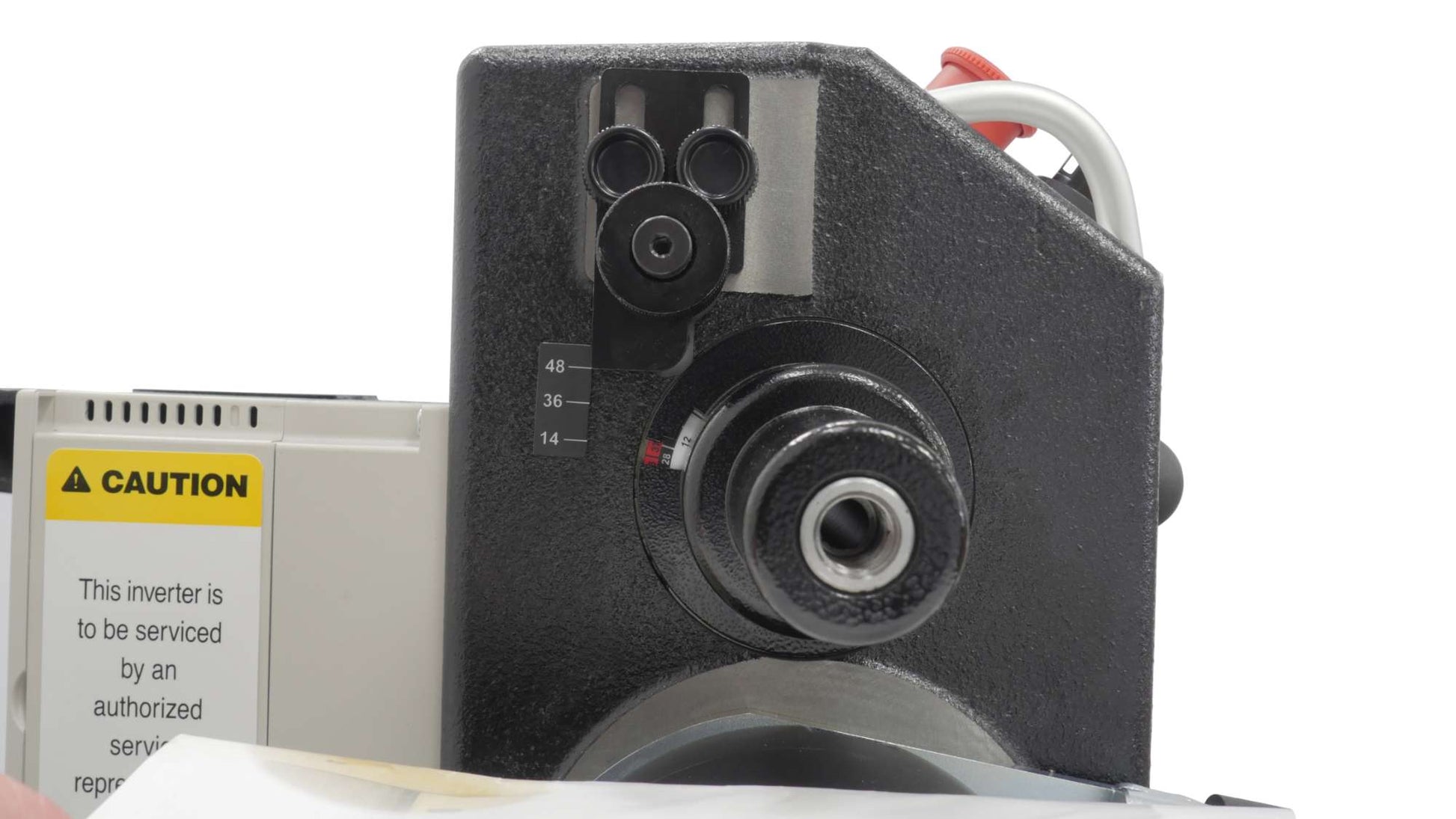

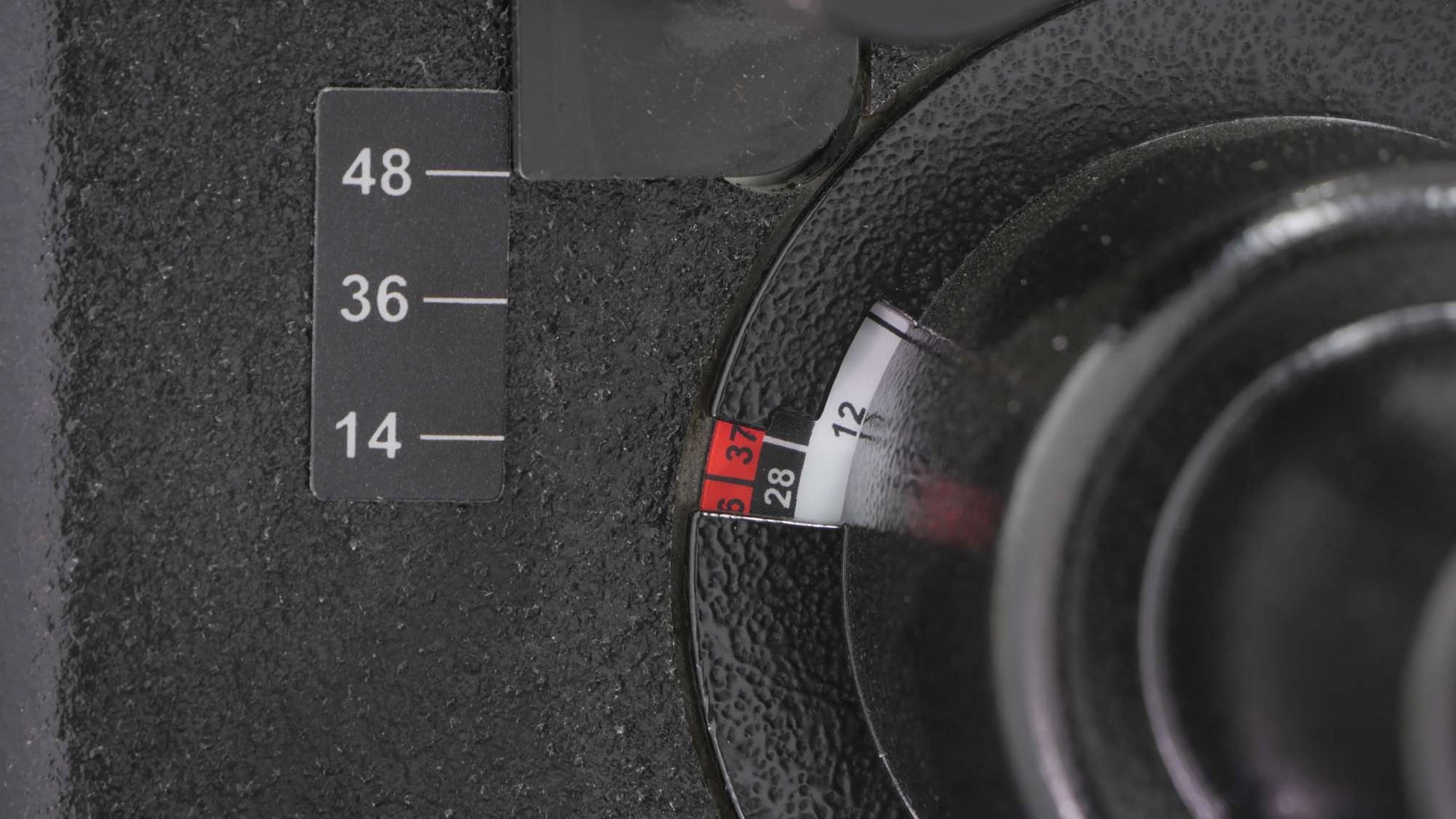

Spindle Index #: 14/36/48 with Lock

Distance Between Centers: 36″

Headstock Through-Bore: ⅜”

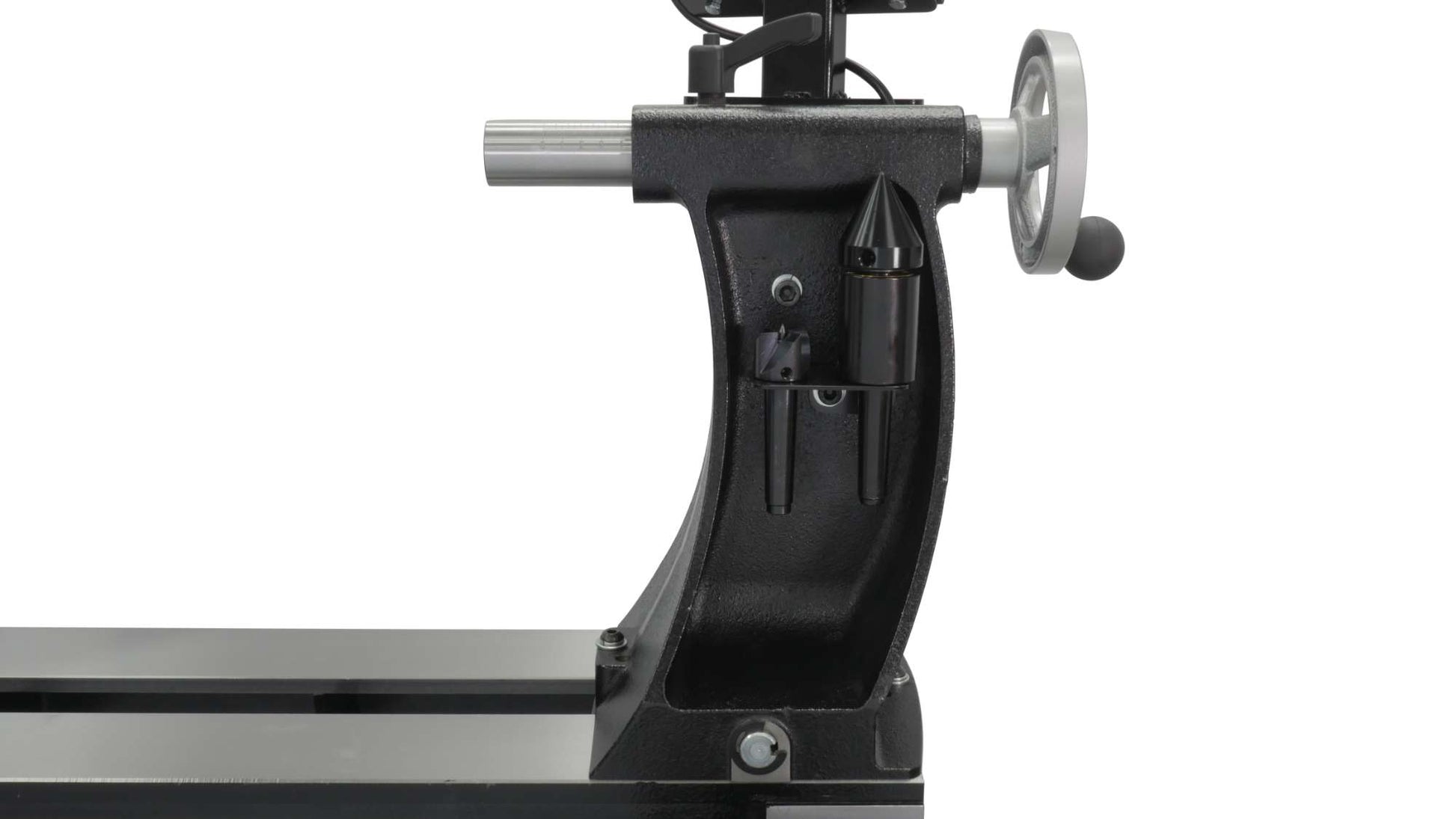

Tailstock Storage Of Centers

Toolrest Post Size: 1″

Spindle Size: 1¼” x 8 TPI RH

Floor To Bed: 32½” with Pads

Spring Loaded Spindle Lock

Max Outboard Swing: 38″

Swing Over Banjo: 19¾”

Face Plate: 3″ Diameter

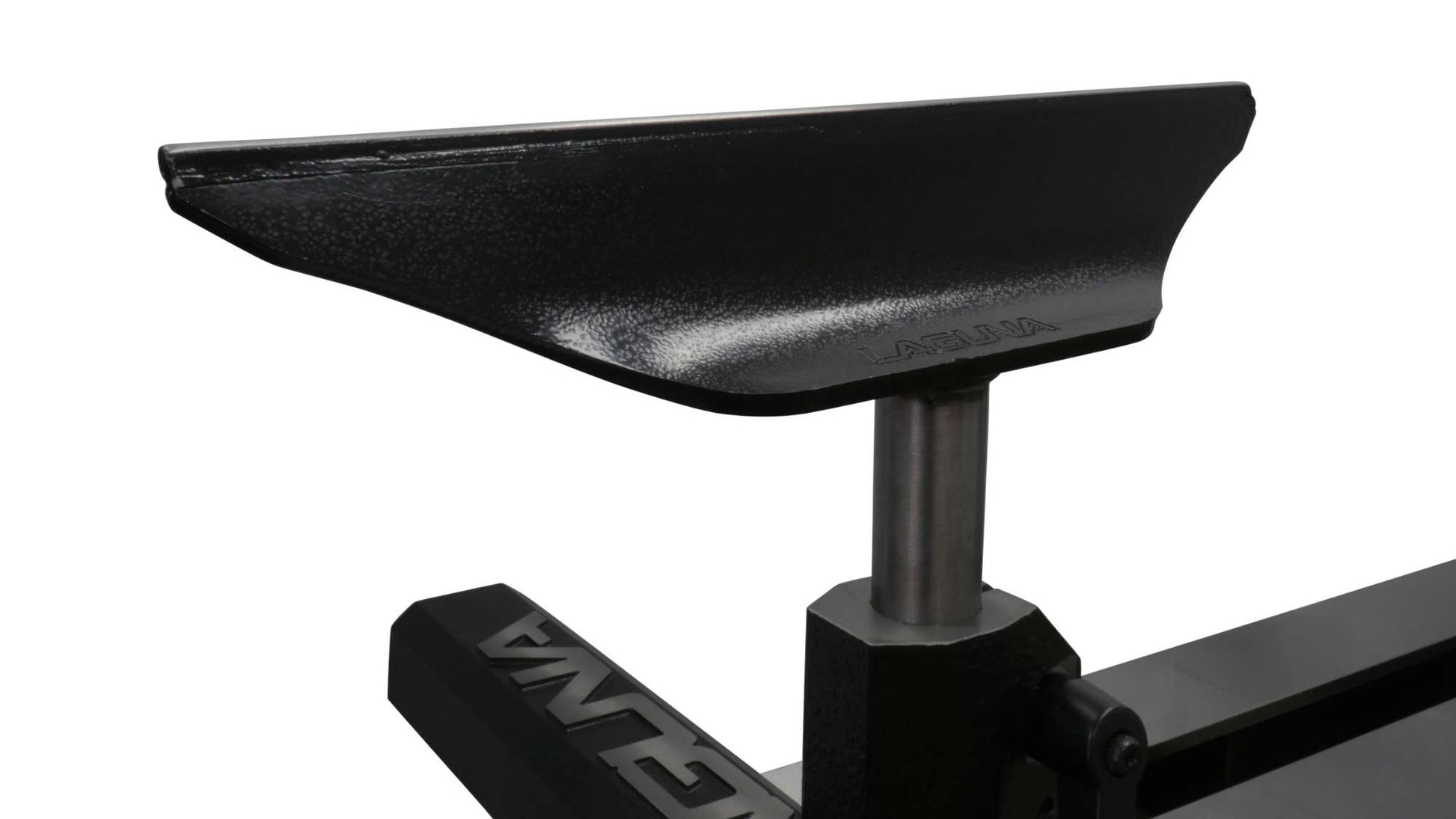

Tool Rest: 12″

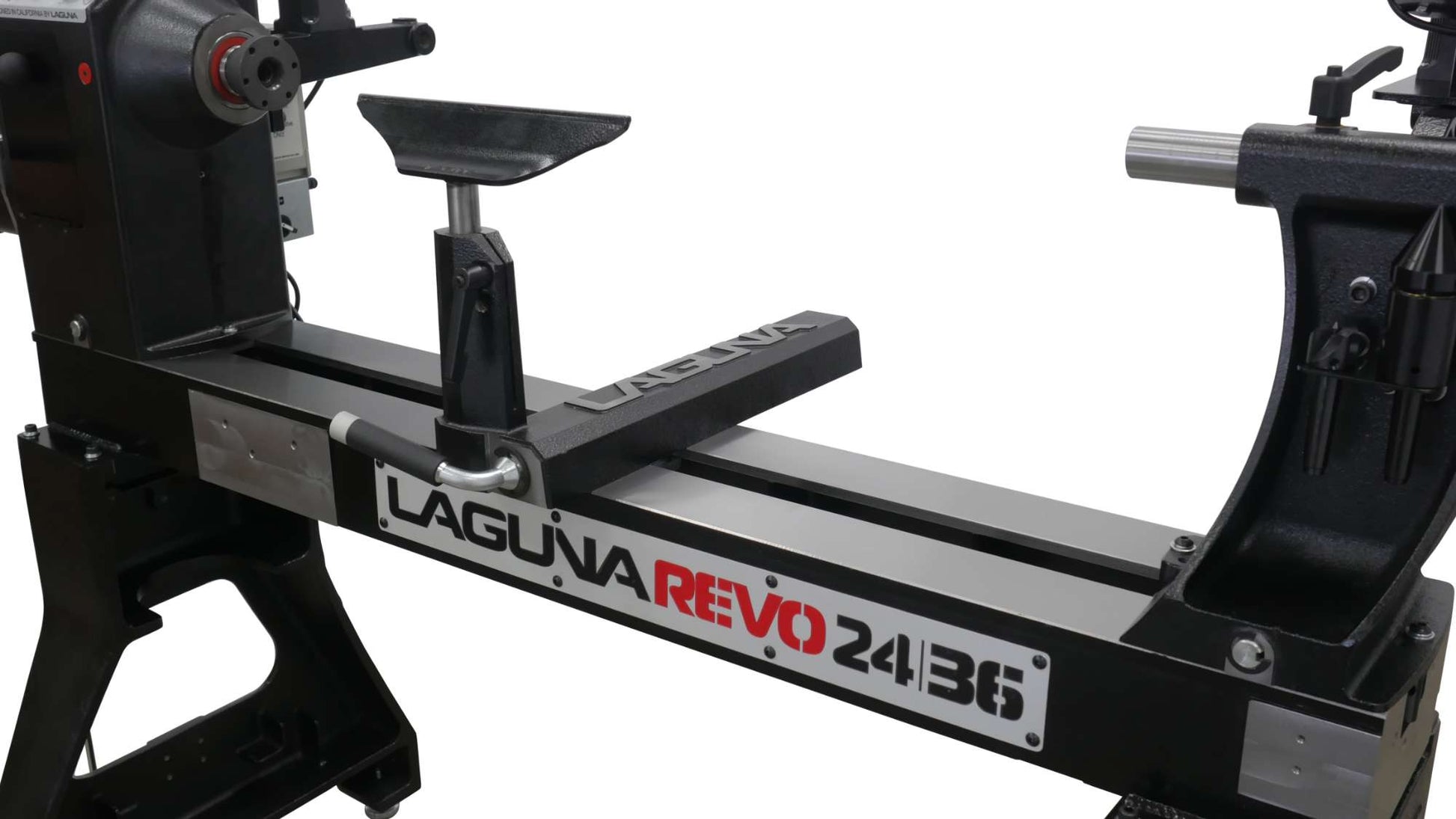

Steel Bed: ASTM A36

Headstock Spindle: MT2 Taper Hardened To 40° HRC

Tailstock Quill: MT2 taper hardened to 40° HRC

Swing Over Bed: 24″

RPM High: 135-3500

RPM Low: 50-1300

Dimensions (W x D x H): 60″ x 26″ x 52¼”

Shipping Weight: 610 lbs

Shipping Dimensions (L x W x H): 36″ x 40″ x 50″

The basic dynamic load rating is 30% higher than a 6207 ball bearing.

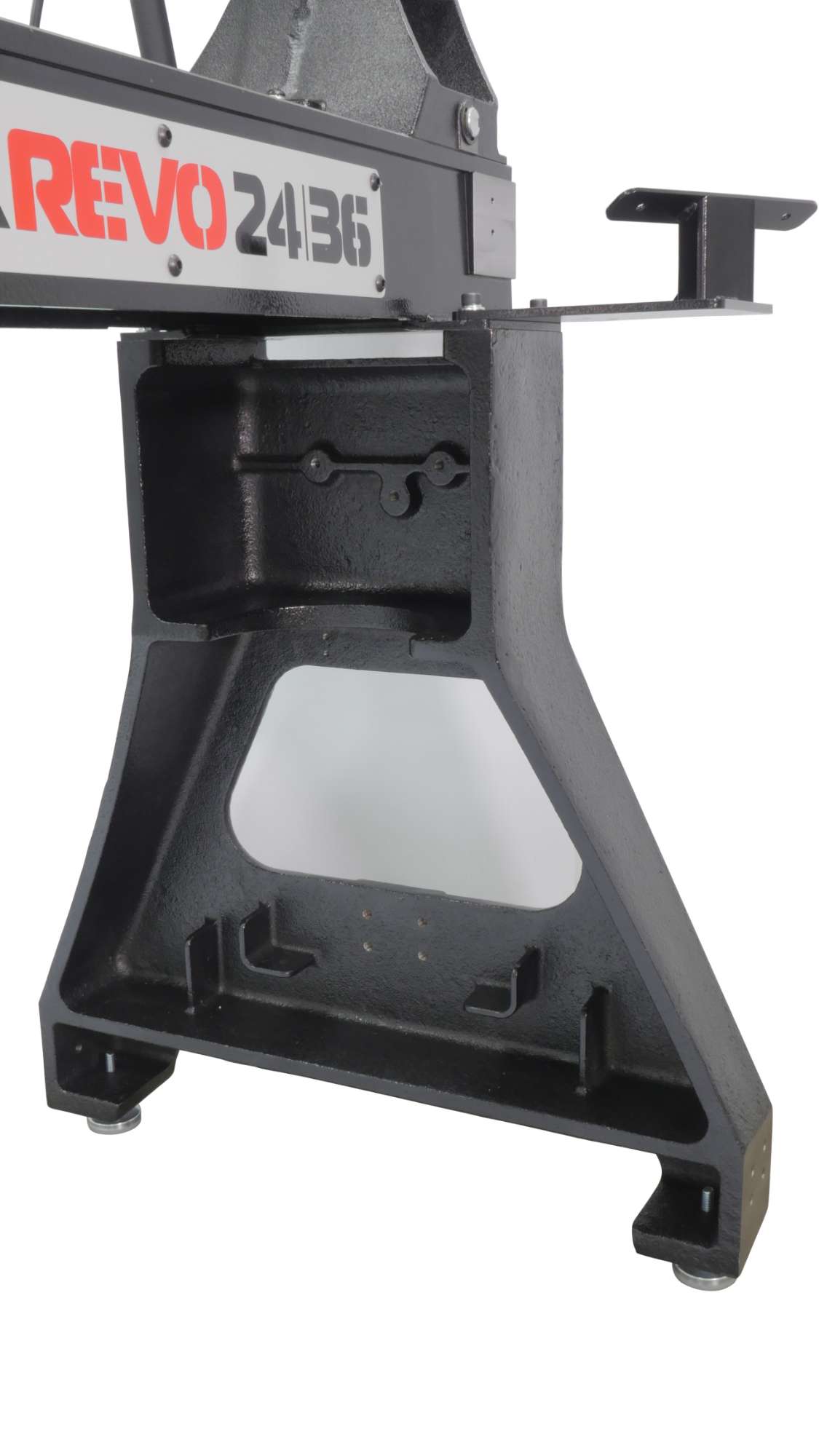

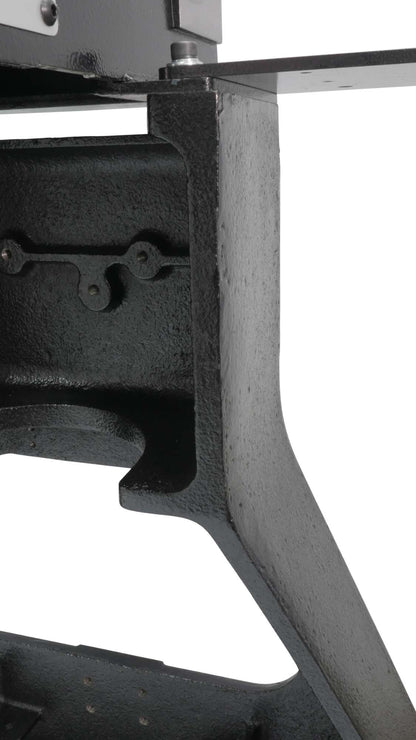

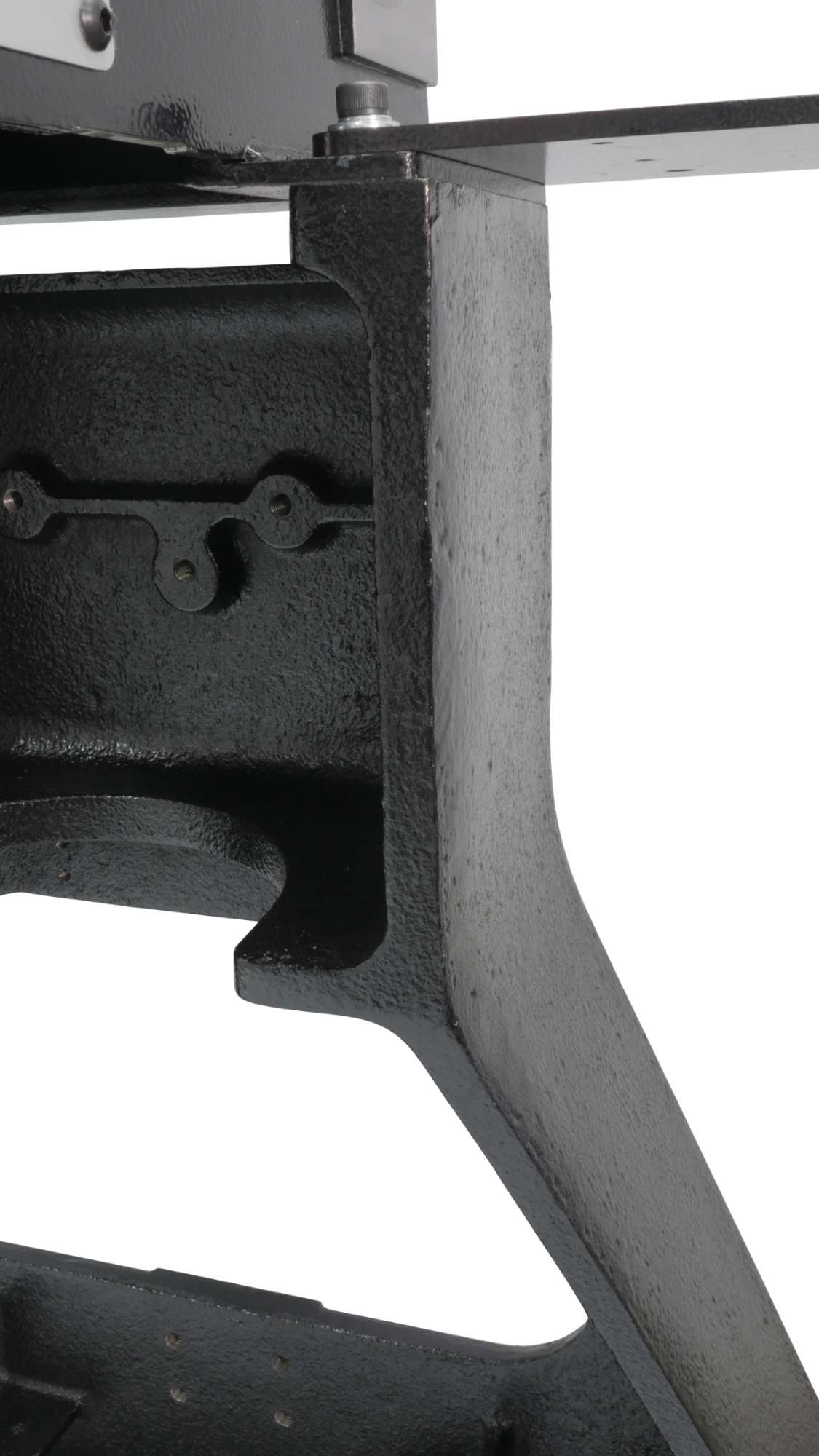

Wall thickness of legs has been increased 80% over the REVO 18|36.

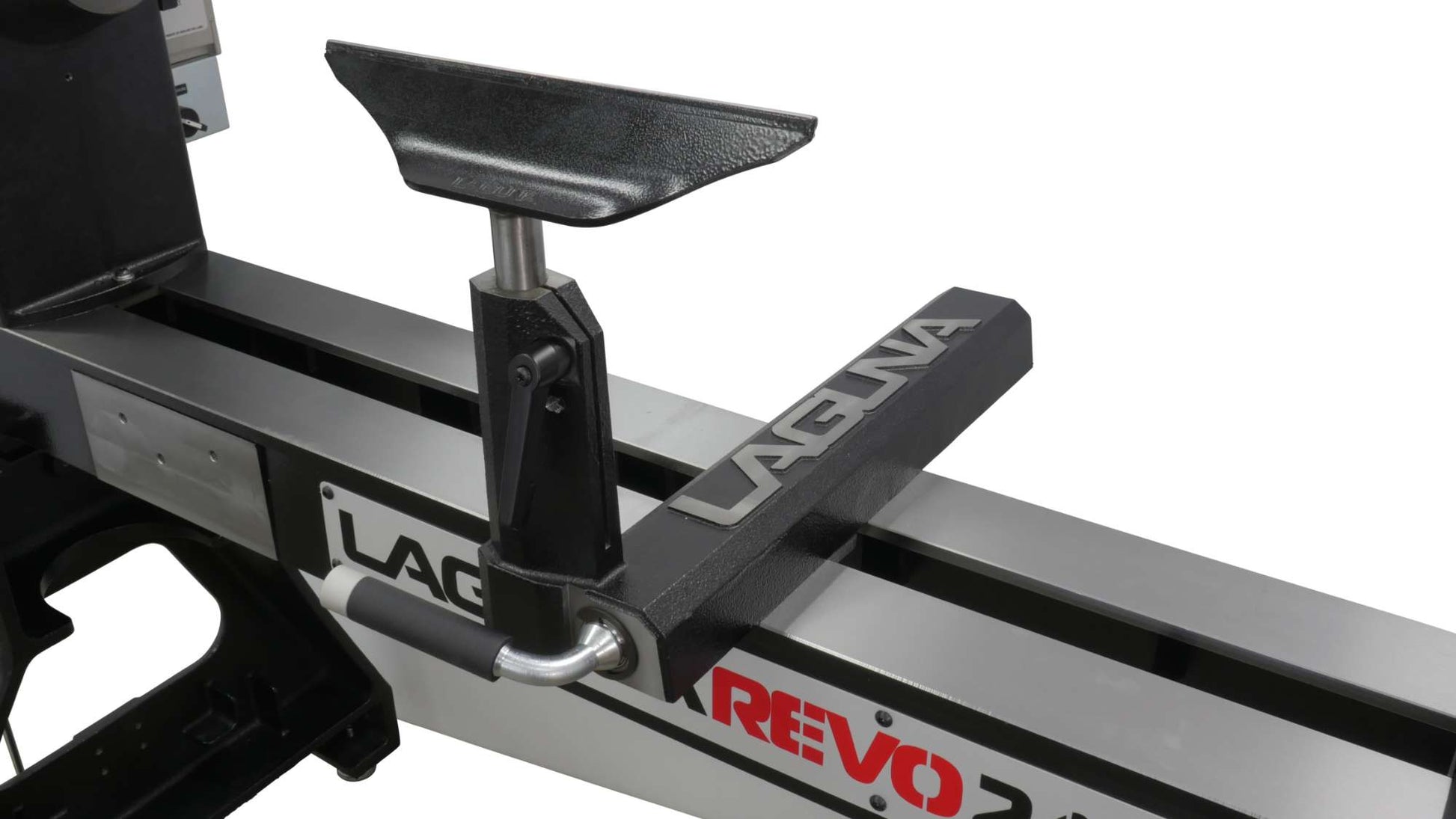

Redesigned banjo features more compact design, 45˚ cutout, wider base, increased eccentric rod diameter and larger hanger resulting in a more solid feel when locking in place.
